##  Messara Trade
						#  23. Case study and conceptual model

						---
						## 23.1 Evidence and case study

> Paliou, Eleftheria, and Andrew Bevan. 2016. ‘Evolving Settlement Patterns, Spatial Interaction and the Socio-Political Organisation of Late Prepalatial South-Central Crete’. Journal of Anthropological Archaeology 42 (June): 184–97. https://doi.org/10.1016/j.jaa.2016.04.006.

						**Takeaways for our conceptual model**

- **Case study**: settlement interaction and the emergence of hierarchical settlement structures in Prepalatial south-central Crete
						- **Phenomena to represent**: cycles of growth and collapse (i.e., fluctuations in the scale of site occupation). Focus on site interconnectivity and its relationship with settlement size.
						- **Main assumption**: topography, transport technology, exchange network, settlement size, wealth, and cultural diversity are intertwined in a positive feedback loop (i.e. big gets bigger or busy gets busier).
						- **Dynamics we expect and want to explore**: the long-term consolidation of central sites and larger territorial polities.

---
						## 23.2 Extending the Pond Trade model

---
						## 23.2 Extending the Pond Trade model

*Mechanisms*:

- ↑ settlement size → ↑ settlement territory
						- ↑ settlement territory → ↑ production (of land)
						- ↑ productivity (of land) → production (of land)
						- ↑ production (of land) → ↑ production (of settlement)

---
						## 23.2 Extending the Pond Trade model

*Expected dynamics*: production is 'grounded', *i.e.*, dependent on each settlement catchment area size and productivity

---
						# 24 Importing spatial data: elevation and site data

---
						## 24.1 The `gis`extension

- Used to import and manage spatial data (raster and vector)
						- Documentation: https://ccl.northwestern.edu/netlogo/docs/gis.html

```NetLogo
						extensions [ gis ]
						```

---
						## 24.2 datasets

- Files in "data/Cretedata/" (credit: Prof. Eleftheria Paliou)
						- Site coordinates were randomly shifted in QGIS for anonymization purposes
						- Datasets:
						  - `EMIII_MMIAsites.shp`: Prepalatial sites (Early Minoan III to Middle Minoan IA)
						  - `MMIBsites.shp`: Middle Minoan IB sites
						  - `dem15.asc`: Elevation data (Digital Elevation Model) at 15m resolution
						  - `rivers.shp`: Major rivers in Messara Valley

---
						## 24.3 Loading GIS data

Use ´gis:load-dataset´ to load raster and vector data

```NetLogo
						globals
						[
						;;; GIS data holders
						sitesData_EMIII-MMIA
						sitesData_MMIB
						elevationData
						riversData
						]

...

to load-gis

; Load all of our datasets
						set sitesData_EMIII-MMIA gis:load-dataset "data/Cretedata/EMIII_MMIAsites.shp"
						set sitesData_MMIB gis:load-dataset "data/Cretedata/MMIBsites.shp"

set elevationData gis:load-dataset "data/Cretedata/dem15.asc"
						set riversData gis:load-dataset "data/Cretedata/rivers.shp"

; Set the world envelope to the union of all of our dataset's envelopes
						gis:set-world-envelope (gis:envelope-of elevationData)

end
						```

---
						## 24.4 Readjusting `world` settings

```Netlogo
						globals
						[
						width
						height

;;; GIS data holders
						sitesData_EMIII-MMIA
						sitesData_MMIB
						elevationData
						riversData
						]

to set-world-dimensions

;;; for better performance, we take a multiple fraction of the dimensions of elevationData,
						;;; so that patches will get average values or more regular sets of pixels

let patchXpixelScale 0.1 ;;; keep it less than 0.25
						let pixelExtentMargin 50

set width ceiling ((pixelExtentMargin + gis:width-of elevationData) * patchXpixelScale)
						set height ceiling ((pixelExtentMargin + gis:height-of elevationData) * patchXpixelScale)

resize-world 0 width 0 height

set-patch-size 3

end
						```

---
						## 24.5 Calculating patch dimensions based on GIS data

```
						globals
						[
						width
						height

areaPerPatch
						patchWidth

;;; GIS data holders
						sitesData_EMIII-MMIA
						sitesData_MMIB
						elevationData
						riversData
						]

to set-world-dimensions

;;; for better performance, we take a multiple fraction of the dimensions of elevationData,
						;;; so that patches will get average values or more regular sets of pixels

let patchXpixelScale 0.1 ;;; keep it less than 0.25
						let pixelExtentMargin 50

set width ceiling ((pixelExtentMargin + gis:width-of elevationData) * patchXpixelScale)
						set height ceiling ((pixelExtentMargin + gis:height-of elevationData) * patchXpixelScale)

resize-world 0 width 0 height

set-patch-size 3

						; Match NetLogo world to the dataset envelope
						gis:set-world-envelope gis:envelope-of elevationData

; Calculate area equivalent to a patch

; if units are in degrees
						;set areaPerPatch calculate-patch-area-degrees elevationData

; if units are in meters
						set areaPerPatch calculate-patch-area-meters elevationData

set patchWidth sqrt (areaPerPatch * 10000) ;;; m = ha * 10,000

end
						```

---
						## 24.5 Calculating patch dimensions based on GIS data

```
						to-report calculate-patch-area-degrees [ rasterData ]

; Get the envelope: [min-x min-y max-x max-y] in degrees
						let env gis:envelope-of rasterData
						let min-lon item 0 env
						let min-lat item 2 env
						let max-lon item 1 env
						let max-lat item 3 env

; Calculate central latitude (φ₀)
						let lat0 (min-lat + max-lat) / 2

; Get raster resolution (number of cells)
						set width gis:width-of rasterData     ; number of columns
						set height gis:height-of rasterData   ; number of rows

; Cell size (in degrees)
						let dlon (max-lon - min-lon) / width
						let dlat (max-lat - min-lat) / height

; Earth radius (meters)
						let R 6371000

; Area per raster cell in square meters (approximate)
						let patchArea (R ^ 2) * abs dlon * abs dlat * cos(lat0 * pi / 180) * (pi / 180) ^ 2

; Report the result
						;  print (word "Approximate area per patch: " patchArea " m² (" (patchArea / 10000) " ha) at latitude " lat0)

report patchArea / 10000

end

to-report calculate-patch-area-meters [ gisData ]

let env gis:envelope-of gisData

let gis-width item 1 env - item 0 env
						let gis-height item 3 env - item 2 env
						;  print (word "width: " gis-width ", height: " gis-height)

let num-patches-x max-pxcor - min-pxcor + 1
						let num-patches-y max-pycor - min-pycor + 1
						;set patch-width gis-width / num-patches-x

let patchArea (gis-width * gis-height) / (num-patches-x * num-patches-y)
						;  print (word "area-per-patch=" area-per-patch)
						set patchArea patchArea / 10000 ; square meters to hectares

report patchArea

end
						```

When in doubt about the units of your GIS data, use one of the procedures and check the output.

---
						## 24.6 Applying GIS data to patches

```NetLogo
						globals
						[
						patchesWithElevationData
						noElevationDataTag
						maxElevation

width
						height

areaPerPatch
						patchWidth

;;; GIS data holders
						sitesData_EMIII-MMIA
						sitesData_MMIB
						elevationData
						riversData
						]

breed [ sites site ]

sites-own
						[
						name
						siteType
						period
						]

patches-own
						[
						elevation
						isRiver
						]

to setup-patches

setup-elevation

setup-rivers

end

to setup-elevation

gis:apply-raster elevationData elevation

set patchesWithElevationData patches with [(elevation <= 0) or (elevation >= 0)]

						;;; replace NaN values added by the gis extension with noElevationDataTag, so it does not generate problems after
						set noElevationDataTag -9999
						ask patches with [not ((elevation <= 0) or (elevation >= 0))] [ set elevation noElevationDataTag ]

set maxElevation max [elevation] of patchesWithElevationData

end

to setup-rivers

ask patchesWithElevationData
						[
							set isRiver gis:intersects? riversData self
						]

end

to setup-sites

;;; gis extension will re-use a site, if it was already created in a position,
						;;; and modify any values we already set.
						;;; In order to avoid this, we cannot use gis:create-turtles-from-points

						let datasetPeriod "EMIII-MMIA"
						foreach gis:feature-list-of sitesData_EMIII-MMIA
						[
							vectorFeature ->

							create-site-from-feature vectorFeature datasetPeriod
						]

						set datasetPeriod "MMIB"
						foreach gis:feature-list-of sitesData_MMIB
						[
							vectorFeature ->

							create-site-from-feature vectorFeature datasetPeriod
						]

end

to create-site-from-feature [ vectorFeature datasetPeriod ]

						let coordTuple gis:location-of (first (first (gis:vertex-lists-of vectorFeature)))
						let featureName gis:property-value vectorFeature "NAME"
						let featureType gis:property-value vectorFeature "TYPE"

let long item 0 coordTuple
						let lat item 1 coordTuple

create-sites 1
						[
							setxy long lat
							set name featureName
							set siteType featureType
							set period datasetPeriod

							set shape "dot"
						]

						end
						```

The gis extension will generate NaN values for patches without elevation data. Since these are not valid numbers, we replace them with a tag value (-9999) to avoid issues later in the simulation.

---
						## 24.7 Higher level procedure: `create-map`

```NetLogo
						to create-map

load-gis  ;; load in the GIS data

set-world-dimensions ;; set world dimensions according to GIS data

setup-patches ;; use GIS data to set patch variables

setup-sites ;; create site agents with properties from sitesData

end
						```

---
						## 24.8 Visualisation

```NetLogo
						to update-display

display-rivers

display-sites

paint-elevation

end

to display-sites

;;; sites dated to EMIII-MMIA: yellow
						gis:set-drawing-color yellow
						gis:draw sitesData_EMIII-MMIA 2

;;; sites dated to MMIB: red
						gis:set-drawing-color red
						gis:draw sitesData_MMIB 2

;;; sites dated to both EMIII-MMIA and MMIB: orange

end

to display-rivers

gis:set-drawing-color blue
						gis:draw riversData 1

end

to paint-elevation

;;; paint patches according to elevation
						;;; NOTE: we must filter out those patches outside the DEM
						ask patchesWithElevationData
						[
							let elevationGradient 100 + (155 * (elevation / maxElevation))
							set pcolor rgb (elevationGradient - 100) elevationGradient 0
						]

end
						```
						Sites from different periods are visualized in different colors. Patches are colored according to their elevation (from green to brown). Rivers are drawn in blue.

---
						## 24.9 Set up procedure and testing

```NetLogo
						to setup

clear-all

create-map

update-display

end
						```

---

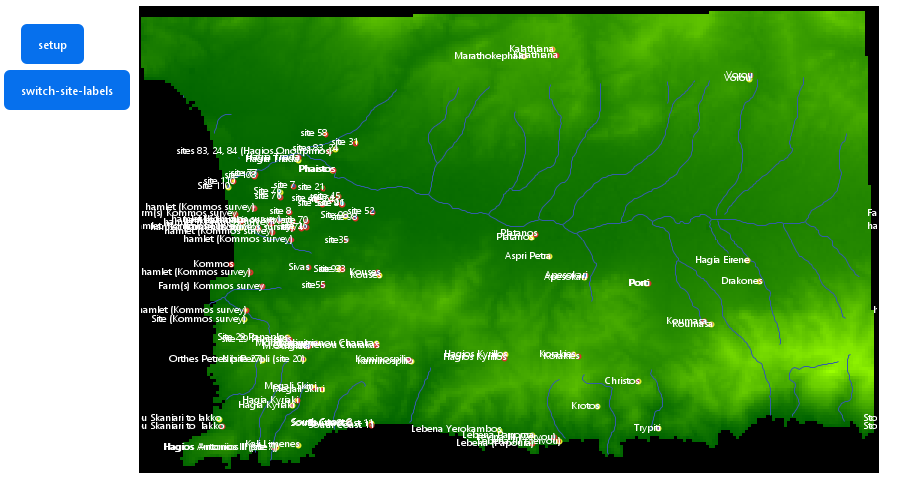

						## 24.10  Checking the milestone File (module 1)

![Screenshot of the 'load-gis-data' module](https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module1_load-gis-data%20interface.png)

---
						# 25 Calculating water flow accumulation

---
						## 25.1 Water flow algorithm

- Implementation taken from the Land submodel in the [Indus Village model](https://github.com/Andros-Spica/indus-village-model) (Angourakis 2021)
						- Based on the algorithm described in Jenson & Domingue (1988) through the implementation used by Huang & Lee (2015)

---
						## 25.2 Adding the main procedures

```NetLogo
						globals
						[
						...

;;; variables
						maxFlowAccumulation
						]

...

patches-own
						[
						elevation ; elevation above sea level [m]

flow_direction ; the numeric code for the (main) direction of flow or
												; drainage within the land unit.
												; Following Jenson & Domingue (1988) convention:
												; NW = 64, N = 128, NE = 1,
												; W = 32, <CENTRE>, E = 2,
												; SW = 16, S = 8, SE = 4

flow_receive          ; Boolean variable stating whether or not the land unit receives
												; the flow of a neighbour.

flow_accumulation     ; the amount of flow units accumulated in the land unit.
												; A Flow unit is the volume of runoff water flowing from one land unit
												; to another (assumed constant and without losses).
						flow_accumulationState ; the state of the land unit regarding the calculation of flow
												; accumulation (auxiliary variable).

isRiver
						]

...

;=======================================================================================================
						;;; START of algorithms based on:
						;;; Jenson, S. K., & Domingue, J. O. (1988).
						;;; Extracting topographic structure from digital elevation data for geographic information system analysis.
						;;; Photogrammetric engineering and remote sensing, 54(11), 1593-1600.
						;;; ===BUT used elsewhere, such as in the algorithms based on:
						;;; Huang, P., Lee, K.T. A simple depression-filling method for raster and irregular elevation datasets.
						;;; J Earth Syst Sci 124, 1653–1665 (2015). https://doi.org/10.1007/s12040-015-0641-2
						;=======================================================================================================

to-report get-drop-from [ aPatch ] ; ego = patch

; "Distance- weighted drop is calculated by subtracting the neighbor’s value from the center cell’s value
						; and dividing by the distance from the center cell, √2 for a corner cell and one for a noncorner cell." (p. 1594)

report ([elevation] of aPatch - elevation) / (distance aPatch)

end

to-report is-at-edge ; ego = patch

report any? neighbors with [elevation = noElevationDataTag]

end

to-report has-flow-direction-code ; ego = patch

if (member? flow_direction [ 1 2 4 8 16 32 64 128 ]) [ report true ]

report false

end

to-report flow-direction-is [ centralPatch ]

if (flow_direction = get-flow-direction-encoding ([pxcor] of centralPatch - pxcor) ([pycor] of centralPatch - pycor))
						[ report true ]

report false

end

to-report get-flow-direction-encoding [ x y ]

if (x = -1 and y = -1) [ report 16 ] ; Southwest
						if (x = -1 and y = 0) [ report 32 ]  ; West
						if (x = -1 and y = 1) [ report 64 ]  ; Northwest

if (x = 0 and y = -1) [ report 8 ]   ; South
						if (x = 0 and y = 1) [ report 128 ]  ; North

if (x = 1 and y = -1) [ report 4 ]   ; Southeast
						if (x = 1 and y = 0) [ report 2 ]    ; East
						if (x = 1 and y = 1) [ report 1 ]    ; Northeast

end

to-report get-patch-in-flow-direction [ neighborEncoding ] ; ego = patch

; 64 128 1
						; 32  x  2
						; 16  8  4

if (neighborEncoding = 16) [ report patch (pxcor - 1) (pycor - 1) ]
						if (neighborEncoding = 32) [ report patch (pxcor - 1) (pycor) ]
						if (neighborEncoding = 64) [ report patch (pxcor - 1) (pycor + 1) ]

if (neighborEncoding = 8) [ report patch (pxcor) (pycor - 1) ]
						if (neighborEncoding = 128) [ report patch (pxcor) (pycor + 1) ]

if (neighborEncoding = 4) [ report patch (pxcor + 1) (pycor - 1) ]
						if (neighborEncoding = 2) [ report patch (pxcor + 1) (pycor) ]
						if (neighborEncoding = 1) [ report patch (pxcor + 1) (pycor + 1) ]

report nobody

end

to-report flow-direction-is-loop ; ego = patch

let thisPatch self
						let dowstreamPatch get-patch-in-flow-direction flow_direction
						;print (word "thisPatch: " thisPatch "dowstreamPatch: " dowstreamPatch)

if (dowstreamPatch != nobody)
						[ report [flow-direction-is thisPatch] of dowstreamPatch ]

report false

end

to set-flow-directions

ask patchesWithElevationData
						[
							ifelse (is-at-edge)
							[
							ifelse ( pxcor = min-pxcor )
							[ set flow_direction 32 ] ; west
							[
								ifelse ( pxcor = max-pxcor )
								[ set flow_direction 2 ] ; east
								[
								ifelse ( pycor = min-pycor )
								[ set flow_direction 8 ] ; south
								[ set flow_direction 128 ] ; north
								]
							]
							]
							[
							set-flow-direction
							]
						]

end

to set-flow-direction ; ego = patch

let thisPatch self

let downstreamPatch max-one-of neighbors with [elevation > noElevationDataTag] [get-drop-from thisPatch]
						set flow_direction get-flow-direction-encoding ([pxcor] of downstreamPatch - pxcor) ([pycor] of downstreamPatch - pycor)

end

to set-flow-accumulations

; From Jenson, S. K., & Domingue, J. O. (1988), p. 1594
						; "FLOW ACCUMULATION DATA SET
						; The third procedure of the conditioning phase makes use of the flow direction data set to create the flow accumulation data set,
						; where each cell is assigned a value equal to the number of cells that flow to it (O’Callaghan and Mark, 1984).
						; Cells having a flow accumulation value of zero (to which no other cells flow) generally correspond to the pattern of ridges.
						; Because all cells in a depressionless DEM have a path to the data set edge, the pattern formed by highlighting cells
						; with values higher than some threshold delineates a fully connected drainage network."

; identify patches that receive flow and those that do not (this makes the next step much easier)
						ask patchesWithElevationData
						[
							set flow_receive false
							set flow_accumulationState "start"
							;set pcolor red
						]

ask patchesWithElevationData with [has-flow-direction-code]
						[
							let patchInFlowDirection get-patch-in-flow-direction flow_direction
							if (patchInFlowDirection != nobody)
							[
							ask patchInFlowDirection
							[
								set flow_receive true
								set flow_accumulationState "pending"
								;set pcolor yellow
							]
							]
						]

let maxIterations 100000 ; just as a safety measure, to avoid infinite loop
						while [count patchesWithElevationData with [flow_accumulationState = "pending" and not flow-direction-is-loop] > 0 and maxIterations > 0 and count patchesWithElevationData with [flow_accumulationState = "start"] > 0 ]
						[
							ask one-of patchesWithElevationData with [flow_accumulationState = "start"]
							[
							let downstreamPatch get-patch-in-flow-direction flow_direction
							let nextFlow_accumulation flow_accumulation + 1

set flow_accumulationState "done"
							;set pcolor orange

if (downstreamPatch != nobody)
							[
								ask downstreamPatch
								[
								set flow_accumulation flow_accumulation + nextFlow_accumulation
								if (count neighbors with [
									elevation > noElevationDataTag and
									get-patch-in-flow-direction flow_direction = downstreamPatch and
									(flow_accumulationState = "pending" or flow_accumulationState = "start")
									] = 0
								)
								[
									set flow_accumulationState "start"
									;set pcolor red
								]
								]
							]
							]

set maxIterations maxIterations - 1
						]

end

;=======================================================================================================
						;;; END of algorithms based on:
						;;; Jenson, S. K., & Domingue, J. O. (1988).
						;;; Extracting topographic structure from digital elevation data for geographic information system analysis.
						;;; Photogrammetric engineering and remote sensing, 54(11), 1593-1600.
						;;; ===BUT used in the algorithms based on:
						;;; Huang P C and Lee K T 2015
						;;; A simple depression-filling method for raster and irregular elevation datasets
						;;; J. Earth Syst. Sci. 124 1653–65
						;=======================================================================================================
						```

The water flow accumulation algorithm assigns a flow direction to each patch based on elevation differences with its neighbours, and then calculates how many patches drain into each patch, resulting in a flow accumulation value.

---
						## 25.2 Adding the main procedures

```NetLogo
						to setup-flows

fill-sinks

						set-flow-directions

set-flow-accumulations

; set maximum flow accumulation as a reference
						set maxFlowAccumulation max [flow_accumulation] of patchesWithElevationData

end
						```

The `setup-flows` procedure integrates the sink-filling, flow direction, and flow accumulation procedures into a single setup step. `maxFlowAccumulation` is set to the maximum flow accumulation value found in the model and it is used for scalling purposes.

						---
						## 25.3 Visualising flow accumulation

```NetLogo
						breed [ flowHolders flowHolder ]

...

to display-flows

if (not any? flowHolders)
						[
							ask patchesWithElevationData [ sprout-flowHolders 1 [ set hidden? true ] ]
						]

ifelse (show-flows)
						[
							ask patchesWithElevationData
							[
							let flow_directionHere flow_direction
							let nextPatchInFlow get-patch-in-flow-direction flow_direction
							if (not [((elevation <= 0) or (elevation >= 0))] of nextPatchInFlow) [ set nextPatchInFlow nobody ]
							let flow_accumulationHere flow_accumulation

ask one-of flowHolders-here
							[
								ifelse (nextPatchInFlow != nobody)
								[
								if (link-with one-of [flowHolders-here] of nextPatchInFlow = nobody)
								[ create-link-with one-of [flowHolders-here] of nextPatchInFlow ]

ask link-with one-of [flowHolders-here] of nextPatchInFlow
								[
									set hidden? false
									let multiplier 1E100 ^ (1 - flow_accumulationHere / (max [flow_accumulation] of patchesWithElevationData)) / 1E100
									set color 92 + (5 * multiplier)
									set thickness 0.4 * ( 1 - ((color - 92) / 5))
								]
								]
								[
								set hidden? false
								let multiplier 1E100 ^ (1 - flow_accumulationHere / (max [flow_accumulation] of patchesWithElevationData)) / 1E100
								set color 92 + (5 * multiplier)
								if (color <= 97) [ set shape "line half" ]
								if (color < 95) [ set shape "line half 1" ]
								if (color < 93) [ set shape "line half 2" ]
								set heading get-angle-in-flow-direction flow_direction
								]
							]
							]
						]
						[
							ask flowHolders
							[
							set hidden? true
							ask my-links [ set hidden? true ]
							]
						]

end

to-report get-angle-in-flow-direction [ neighborEncoding ]

; 64 128 1
						; 32  x  2
						; 16  8  4

if (neighborEncoding = 16) [ report 225 ]
						if (neighborEncoding = 32) [ report 270 ]
						if (neighborEncoding = 64) [ report 315 ]

if (neighborEncoding = 8) [ report 180 ]
						if (neighborEncoding = 128) [ report 0 ]

if (neighborEncoding = 4) [ report 135 ]
						if (neighborEncoding = 2) [ report 90 ]
						if (neighborEncoding = 1) [ report 45 ]

report nobody

end
						```

Flow accumulation is visualized using links between `flowHolder` agents that are created on patches. The thickness and color of the links represent the flow accumulation values.

---
						## 25.3 Visualising flow accumulation

---
						## 25.4 Assessing fit

```NetLogo
						ask patches with [flow_accumulation > 10] [ set pcolor red ]
						```

By asking patches with flow accumulation values above a certain threshold to change color, we can visually assess the potential "rivers" estimated in the landscape.

---
						## 25.4 Assessing fit

| patch 70 145 | patch 179 69 | patch 70 145 | patch 201 108 | patch 125 99 | patch 54 106 |
						| --- | --- | --- | --- | --- | --- |
						| <img src="https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module2_flows-detail-patch-70-145.png" width="200"> | <img src="https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module2_flows-detail-patch-179-69.png" width="200"> | <img src="https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module2_flows-detail-patch-70-145.png" width="200"> | <img src="https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module2_flows-detail-patch-201-108.png" width="200"> | <img src="https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module2_flows-detail-patch-125-99.png" width="200"> | <img src="https://codarchlab-abm.github.io/course-guide/assets/screenshots/BlockC_module2_flows-detail-patch-54-106.png" width="200"> |
